Locust Pedal Box
T& J Pedal
Box
Various
pedal assemblies can be used including the Triumph Spitfire. The mounting
positions should be fount by performing a trial fit. A purpose built pedal
box can be used to mount Ford Escort pedals. This is the easiest method.

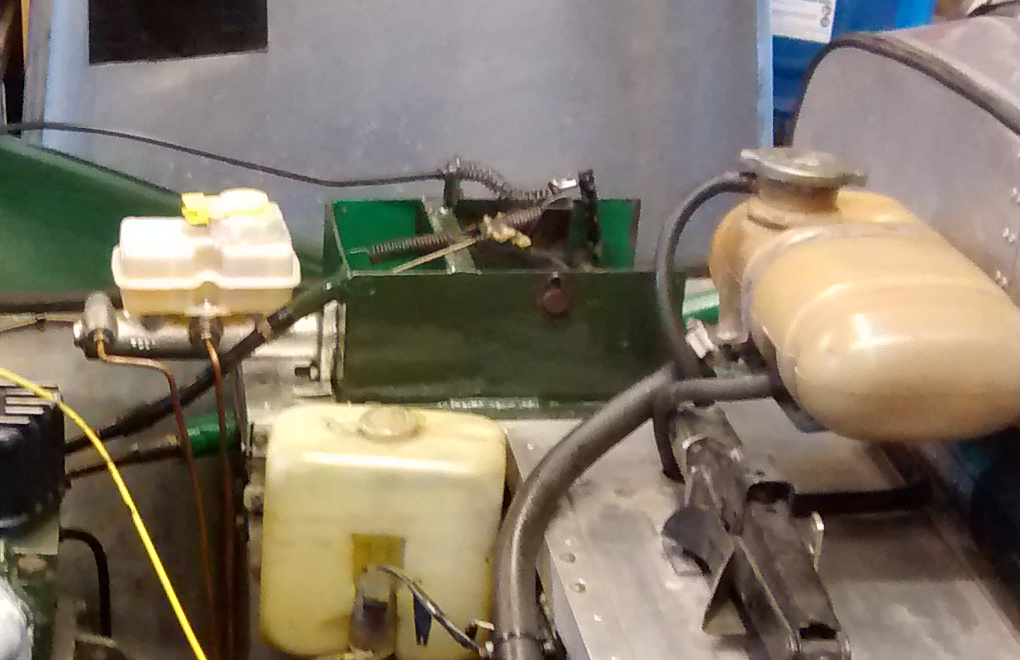

The pedal box as manufactured by T&J takes standard pedals mounted
on the Escort pedal hinge pin. The pedals are spaced to suit using appropriate
washers and spacing tubes. The Escort throttle pedal will require a slight
modification to mount in the pedal box. The pedal box also includes mountings
for brake master cylinder (non servo Ford) and clutch cable (Ford Cortina).
It is often a tight fit for the pedals and if this is so you can gain
extra space by replacing the Driver's Gearbox Side Panel with a thinner
material.

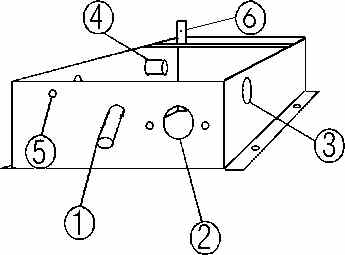

Pedal Box
1. Clutch cable receptacle.
2. Mounting for brake master cylinder.
3. Hole for pedal hinge pin.
4. Mounting for throttle pedal.
5. Hole for throttle cable.
6. Throttle cable retainer.
